Autoscaling ECS workloads with event-driven SQS metrics

Introduction

In the ever-changing landscape of cloud computing, it is pivotal that our applications aren't just surviving but thriving under varying loads. One of the most effective strategies to achieve this is through AWS ECS autoscaling, allowing you to scale horizontally based on demand. Traditionally we've leaned on the plain-old metrics like CPU and memory usage to guide this scaling. Although these metrics have served a variety of applications well, there are some limitations when it comes to event-driven applications.

Problem Statement

Imagine, you are running an order processing application, which is gearing up for the upcoming Boxing Day sale. A critical event, where any performance bottlenecks like a backlog of unprocessed messages could result in significant revenue loss and unhappy customers.

Here is the catch: while your app is polling messages from a SQS queue, this queue starts to overflow with a flurry of orders. Meanwhile, CPU and memory metrics might suggest that everything is under control, tempting you to relax and watch the IND V/S AUS boxing day match instead, but the growing queue might suggest a different story. In such cases, traditional scaling metrics can be misleading, potentially leaving your service overwhelmed and unable to keep up with the pace of incoming messages.

Solution

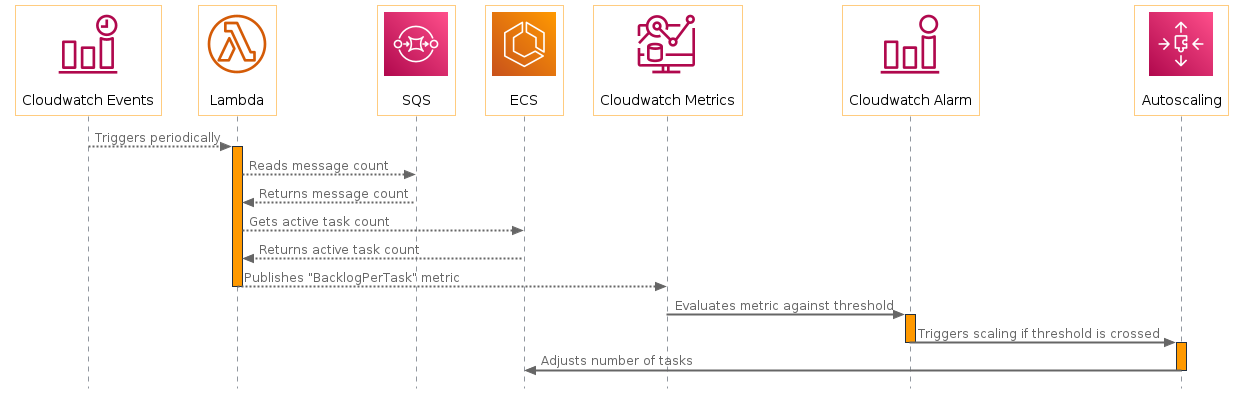

Below is a 30000 feet overview of how the various components within our solution interact:

Lambda

At regular intervals, this function will compute the BacklogPerTask metric (which we discuss in depth below) by assessing the number of messages in the queue and current active tasks in a given ECS service.

Cloudwatch

Next, the calculated BacklogPerTask metric is then published to Cloudwatch metrics, which later will be used to create a Cloudwatch alarm for detecting when the metric has gone above/below the predefined threshold.

ECS Autoscaling

Based on the BacklogPerTask Cloudwatch alarms, AWS Autoscaling will ensure that ECS service's tasks are dynamically adjusted to handle the current workload.

What is backlog per task?

The core of our solution relies on calculating theBacklogPerTask metric, where we divide the current number of messages in a queue by the count of active tasks running in the ECS service.

To put it into reality, let's circle back to our earlier example of the order processing application. For the sake of it, let's imagine that after rigorous and thorough load testing you have found the magic number to be 20, which is the number of messages a single ECS task can process at a time with ease. Now, let's see what would happen in case of a traffic spike:

1. Our Lambda will run every minute, so it will capture both the current number of messages in the queue and also the current number of active tasks in the ECS service. With this info it will divide the count of messages in the queue with the number of active tasks, e.g. with 60 messages and 2 tasks, the result would be 60/2 = 30, leaving us with 30 as our current BacklogPerMetric value.
2. Lambda will then publish this BacklogPerMetric to AWS Cloudwatch metrics as a custom metric.
3. Next, AWS Cloudwatch alarm will have two alarms configured, one for when the BacklogPerMetric is higher than the predefined threshold and the other for the lower than. With this in mind, if we take the previous number of 30 as our current BacklogPerMetric and 20 as the ideal threshold we defined for our tasks, AWS Cloudwatch would trigger that alarm in an alarm state.
4. Finally, AWS Autoscaling will have these alarms configured and based on this it would scale up the number of desired tasks in the ECS service, bringing back stability to the application amongst an unexpected spike.

You might also wonder, why not simply track the native ApproximateNumberOfMessages metric that is available by default? The reason is quite straightforward and you might already see it in the above explanation. Queue length alone doesn't account for an individual ECS task's processing capability, thus lacking enough context needed to make an informed decision when autoscaling.

Defining Task Capacity

Before we can effectively utilize the BacklogPerTask metric, it is crucial to first understand the processing capability of a single ECS task. This involves determining the maximum number of messages a single task can handle under varying loads without any compromise on performance.

Below is a suggested approach on how you might achieve this:

1. Benchmarking: Perform load tests on your existing ECS tasks to understand how many messages each task can process within an acceptable time frame before there are any signs of performance dips.
2. Define Thresholds: Post the benchmark results, and set a conservative threshold for the number of messages a task should handle, providing it a cushion to handle any unexpected spikes, bringing more stability to your application.

For example, if the testing shows that a single task can handle 100 messages per minute with ease before experiencing any speed decreases, setting the metric threshold at 80 messages offers enough buffer to accommodate any unusual demands.

Or you can skip all this work and do load testing during the peak event:

Prerequisites

Before we deep dive into the implementation, ensure that you have:

AWS account

AWS will be our choice of the cloud for this blog post; if you are not already registered, you can sign up for its free tier at AWS' sign up page.

Node

If you don't have Node.js installed, download the v20 version from the Node.js website.

Terraform CLI

If you don't have Terraform CLI installed, download it from Terraform's download page. For my Mac machine, I have used homebrew to install it.

Implementation

To kick it off, we will first configure Terraform with minimum version constraints for the AWS provider and also set the correct AWS region as well.

terraform {
  required_version = "~> 1.7.0"

  required_providers {
    aws = "~> 5.40.0"
  }
}

provider "aws" {
  region = "ap-southeast-2"
}

I am based in Australia, so I will use the ap-southeast-2 (Sydney) region.

Queue

Next, we'll create a Simple Queue Service (pun intended) with the name of orders-queue:

resource "aws_sqs_queue" "queue" {
  name = "orders-queue"
}

This block sets us up with a basic queue that can handle storage of order messages.

Lambda

Code

The core of our solution relies on this Lambda function which will calculate and publish the BacklogPerTask metric to CloudWatch. The following TypeScript code snippet illustrates this process:

import {
  CloudWatchClient,
  PutMetricDataCommand,
} from "@aws-sdk/client-cloudwatch";
import { ECSClient, ListTasksCommand } from "@aws-sdk/client-ecs";
import { GetQueueAttributesCommand, SQSClient } from "@aws-sdk/client-sqs";

const cloudwatchClient = new CloudWatchClient();
const ecsClient = new ECSClient();
const sqsClient = new SQSClient();

async function getApproximateNumberOfMessagesInQueue(queueUrl: string) {
  const { Attributes } = await sqsClient.send(
    new GetQueueAttributesCommand({
      QueueUrl: queueUrl,
      AttributeNames: ["ApproximateNumberOfMessages"],
    })
  );

  console.log(
    `there are ${Attributes?.ApproximateNumberOfMessages} of messages in the queue`
  );

  return +(Attributes?.ApproximateNumberOfMessages || 0);
}

async function getNumberOfActiveTaskInService(
  clusterName: string,
  serviceName: string
) {
  const result = await ecsClient.send(
    new ListTasksCommand({
      cluster: clusterName,
      serviceName: serviceName,
      desiredStatus: "RUNNING",
    })
  );

  console.log(
    `there are ${result.taskArns?.length} tasks running in ${clusterName}/${serviceName}`
  );

  return result.taskArns?.length || 0;
}

async function putMetricData(
  value: number,
  clusterName: string,
  serviceName: string
) {
  console.log(
    `Publishing metric value of ${value} for cluster: ${clusterName} and service: ${serviceName}`
  );

  await cloudwatchClient.send(
    new PutMetricDataCommand({
      Namespace: "ECS/CustomMetrics",
      MetricData: [
        {
          MetricName: "BacklogPerTask",
          Dimensions: [
            {
              Name: "ClusterName",
              Value: clusterName,
            },
            {
              Name: "ServiceName",
              Value: serviceName,
            },
          ],
          Unit: "Count",
          Value: value,
        },
      ],
    })
  );
}

export async function handler() {
  const queueUrl = process.env.QUEUE_URL;
  const ecsClusterName = process.env.ECS_CLUSTER_NAME;
  const ecsServiceName = process.env.ECS_SERVICE_NAME;

  if (!queueUrl || !ecsClusterName || !ecsServiceName) {
    throw new Error("Missing environment variables");
  }

  const approximateNumberOfMessages =
    await getApproximateNumberOfMessagesInQueue(queueUrl);

  const numberOfActiveTaskInService = await getNumberOfActiveTaskInService(
    ecsClusterName,
    ecsServiceName
  );

  const backlogPerTask =
    approximateNumberOfMessages / numberOfActiveTaskInService || 0;

  await putMetricData(backlogPerTask, ecsClusterName, ecsServiceName);
}

Let's break this Lambda code down a bit:

Fetching Queue Messages

We start by calling the getApproximateNumberOfMessagesInQueue function that makes a call to SQS to retrieve the approximate number of messages waiting in the queue. This helps us to understand the load that our service is currently under.

Counting Active ECS Tasks

To get a snapshot of the current ECS service's processing capability, we call the getNumberOfActiveTaskInService function which as the name suggests, lists the number of active tasks in a given ECS service.

Publishing "BacklogPerTask" metric to Cloudwatch

With both the backlog and number of tasks at hand, the putMetricData function calculates the BacklogPerTask and publishes it as a custom metric to Cloudwatch. Also, please note how we are publishing it in customised dimensions such as ClusterName & ServiceName,

Infrastructure

Next, we will define the Terraform resources needed for the Lambda function, including IAM roles and policies, the function itself and the Cloudwatch event rule.

IAM Role and Policy

Let's setup the IAM role that our Lambda will assume when calculating the BacklogPerTask metric:

data "aws_iam_policy_document" "backlog_per_task_metric_lambda_assume_role" {
  statement {
    effect = "Allow"

    principals {
      type        = "Service"
      identifiers = ["lambda.amazonaws.com"]
    }

    actions = ["sts:AssumeRole"]
  }
}

resource "aws_iam_role" "backlog_per_task_metric_lambda_role" {
  name               = "iam_for_lambda"
  assume_role_policy = data.aws_iam_policy_document.backlog_per_task_metric_lambda_assume_role.json
}

We now need to attach IAM permissions to this role so that our Lambda can do the following actions:

1. List tasks in a given ECS service
2. Get queue attributes from the SQS queue which contains the number of messages in queue metric.

data "aws_iam_policy_document" "backlog_per_task_metric_lambda_role" {
  statement {
    effect    = "Allow"
    actions   = ["ecs:ListTasks"]
    resources = ["*"]
  }

  statement {
    effect    = "Allow"
    actions   = ["sqs:GetQueueAttributes"]
    resources = [aws_sqs_queue.queue.arn]
  }


  statement {
    actions   = ["cloudwatch:PutMetricData"]
    resources = ["*"]
  }
}

resource "aws_iam_role_policy" "backlog_per_task_metric_lambda_policy" {
  role   = aws_iam_role.backlog_per_task_metric_lambda_role.id
  policy = data.aws_iam_policy_document.backlog_per_task_metric_lambda_role.json
}

resource "aws_iam_role_policy_attachment" "backlog_per_task_metric_lambda_basic_policy" {
  role       = aws_iam_role.backlog_per_task_metric_lambda_role.id
  policy_arn = "arn:aws:iam::aws:policy/service-role/AWSLambdaBasicExecutionRole"
}

Lambda Function

Next, let's provision the Lambda function:

Packaging Lambda

Before we define Terraform config for the Lambda function, we need prepare the Lambda's application code by packaging into a zip file.

data "archive_file" "backlog_per_task_metric_lambda" {
  type        = "zip"
  source_file = "${path.module}/../apps/backlog-per-task-lambda/dist/index.js"
  output_path = "data/backlog_per_task_metric_lambda.zip"
}

With the source code being bundled into a zip file, we can now define the Lambda function:

resource "aws_lambda_function" "backlog_per_task_metric_lambda" {
  filename      = "data/backlog_per_task_metric_lambda.zip"
  function_name = "backlog-per-task-metric-lambda"
  role          = aws_iam_role.backlog_per_task_metric_lambda_role.arn
  handler       = "index.handler"

  source_code_hash = data.archive_file.backlog_per_task_metric_lambda.output_base64sha256

  runtime = "nodejs20.x"

  environment {
    variables = {
      QUEUE_URL        = aws_sqs_queue.queue.url
      ECS_CLUSTER_NAME = aws_ecs_cluster.cluster.name
      ECS_SERVICE_NAME = aws_ecs_service.service.name
    }
  }
}

In the above code, we have supplied the Lambda with essential environment variables such as Queue URL and ECS service name from other Terraform resources dynamically rather than hardcoding it, providing reusability for future use cases.

A side note that I've used the default aws_lambda_function resource here rather than my favourite Lambda terraform module for simplicity's sake and also limit the scope of this blog.

Cloudwatch Event Rule

Next, we will set up the Cloudwatch event rule that will be responsible for invoking this Lambda every minute.

resource "aws_cloudwatch_event_rule" "backlog_per_task_metric_lambda" {
  name                = "backlog-per-task-metric-lambda"
  schedule_expression = "rate(1 minute)"
}

resource "aws_cloudwatch_event_target" "backlog_per_task_metric_lambda" {
  arn   = aws_lambda_function.backlog_per_task_metric_lambda.arn
  rule  = aws_cloudwatch_event_rule.backlog_per_task_metric_lambda.id
}

Finally, we need to attach a resource level permission to our Lambda function, which will allow the Cloudwatch events to invoke it:

resource "aws_lambda_permission" "backlog_per_task_metric_lambda" {
  action        = "lambda:InvokeFunction"
  function_name = aws_lambda_function.backlog_per_task_metric_lambda.function_name
  principal     = "events.amazonaws.com"
  source_arn    = aws_cloudwatch_event_rule.backlog_per_task_metric_lambda.arn
}

ECS autoscaling

Scaling Target

First, we will define our ECS service as an autoscaling target which AWS Application AutoScaling can autoscale:

resource "aws_appautoscaling_target" "ecs_target" {
  max_capacity       = 5
  min_capacity       = 2
  resource_id        = "service/${aws_ecs_cluster.cluster.name}/${aws_ecs_service.service.name}"
  scalable_dimension = "ecs:service:DesiredCount"
  service_namespace  = "ecs"
}

In the above code, we've defined the minimum and maximum tasks our ECS service should maintain, I've set up 5 as the maximum and 2 as the lowest capacity, feel free to customize it to your needs. Also, take note of how resource_id is composed, we've constructed it in a way that uniquely identifies our ECS service.

Scaling Policy

Next, we will set up the scaling policy, it will control the way our ECS service will scale, making use of our BacklogPerTask metric.

resource "aws_appautoscaling_policy" "ecs_policy" {
  name               = "scale-backlog-per-task"
  policy_type        = "TargetTrackingScaling"
  resource_id        = aws_appautoscaling_target.ecs_target.resource_id
  scalable_dimension = aws_appautoscaling_target.ecs_target.scalable_dimension
  service_namespace  = aws_appautoscaling_target.ecs_target.service_namespace

  target_tracking_scaling_policy_configuration {
    target_value = 20

    customized_metric_specification {
      metric_name = "BacklogPerTask"
      namespace   = "ECS/CustomMetrics"
      statistic   = "Average"
      unit        = "Count"

      dimensions {
        name  = "ClusterName"
        value = aws_ecs_cluster.cluster.name
      }

      dimensions {
        name  = "ServiceName"
        value = aws_ecs_service.service.name
      }
    }
  }
}

This policy uses the TargetTrackingScaling policy to scale the ECS tasks, which as the name suggests aims to target that on average each ECS task is handling 20 messages at a time. With this approach, we ensure that our ECS service's workload is kept at a manageable level, allowing it to scale effectively and maintain an optimal performance.

Conclusion

In this blog post, we've built an autoscaling solution for event-driven applications, making use of custom SQS based Cloudwatch Metrics with AWS Lambda and Terraform. By adopting these event-driven metrics, we've ensured that our application can cope with varying demands.

Thanks for reading this blog, I hope that this tutorial helps you in optimizing your use case. Please feel free to reach out if you have any questions.
